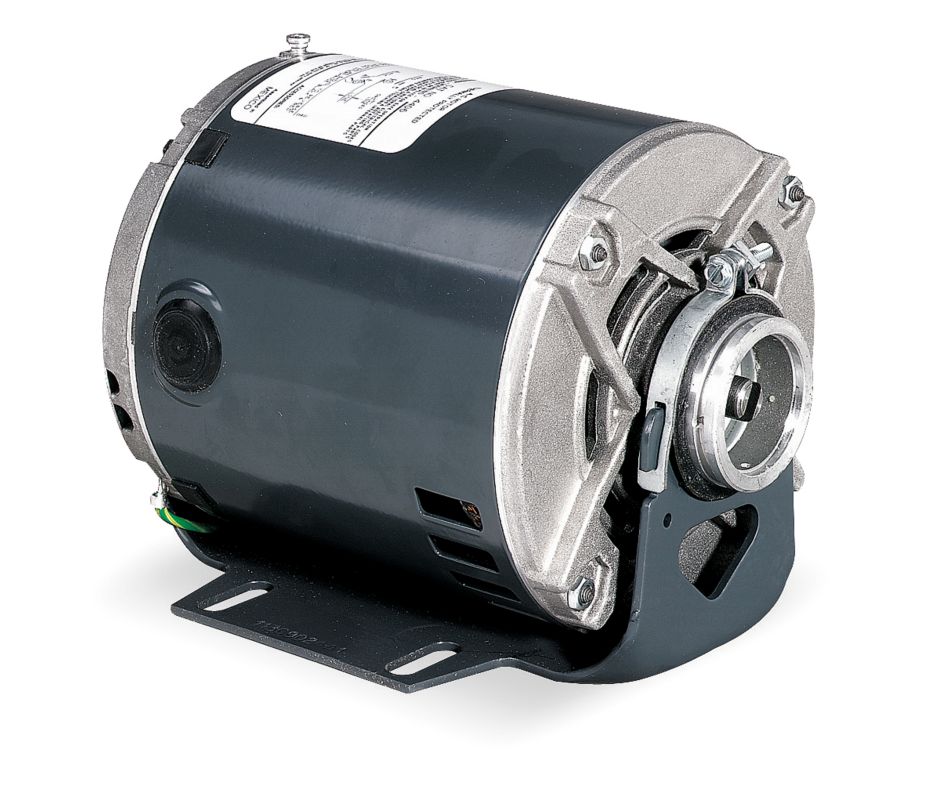

1/3 Hp, 1725 Rpm Glycol Pump Motor - 240v

1/3 Hp, 1725 Rpm Glycol Pump Motor – 240v

Categories: , , Tags: , , , , , , ,

Description

TECHNICAL SPECS

  • ItemCarbonator Pump Motor
  • Motor ApplicationPump
  • Motor Sub ApplicationCarbonator Pump
  • Motor DesignSplit-Phase
  • Motor Enclosure DesignOpen Dripproof
  • HP1/3
  • Nameplate RPM1725
  • Frame48Y
  • Voltage100-120/200-240
  • Hz60/50
  • Phase1
  • Full Load Amps5.5-5.6/2.7-2.8
  • Motor Mounting TypeCradle Base
  • Motor Thermal ProtectionAuto
  • Ins. ClassB
  • Motor Service Factor1.00
  • Motor BearingsBall
  • Max. Ambient Temp.40 Degrees C
  • Motor Shaft RotationCW/CCW
  • Overall Length7-15/16″
  • Shaft Dia.5/8″
  • Shaft Length1-1/2″
  • RPM Range1701-1800
Print Friendly, PDF & EmailPrint Friendly

Additional information

Weight 12.75 lbs
Dimensions 8 × 9 × 13 in
